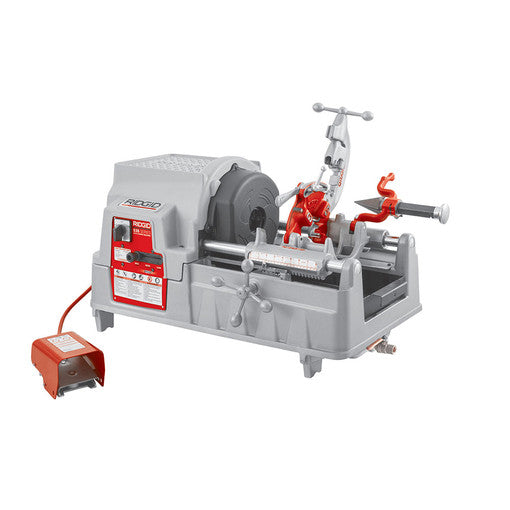

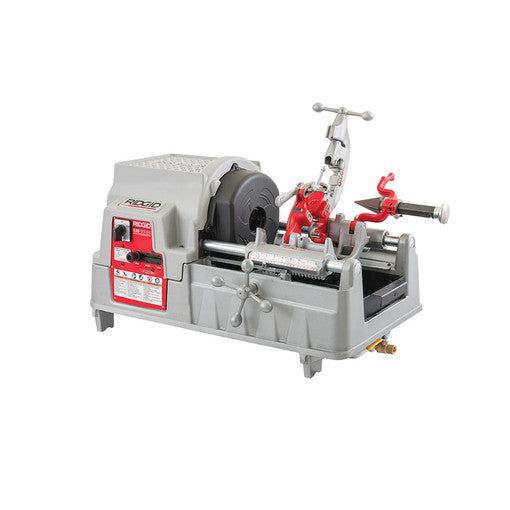

RIDGID 535 Automatic 2" NPT Automatic Threading Machine w/ 811 DH



The 535 maintains the ruggedness of the industry workhorse while adding features that make the threading operation more productive. A large chip tray and oil reservoir make the 535 ideal for longer uninterrupted threading. The 535 is designed around maximum uptime with the upgrades that matter most to the pipe working professional. Users also benefit from the part commonality between the 535, 535A Automatic,and other RIDGID equipment.


  • Large 1.75 gallon (6.6L) oil tray
  •  Large chip tray
  •  A generous top covering for keeping tools and fittings handy
  •  A high-clearance carriage makes threading easier
  • Speed chuck with rocker-action jaws centers and grips work piece instantly.
  • Can be used with geared 141 and 161 threaders.
  • Uses Model 816/817 semiautomatic, Model 815A self-opening or Model 811A quick-opening die heads.
  • Length gauge for quick, accurate cut-off
  •  No. 811A Universal, Quick-opening Die Head (for models 816/817 die heads)
  •  No. 341 Reamer.
  •  No. 820 Cutter.
  •  Set 1/2"-3/4" Universal High-Speed Dies.
  •  Set 1" - 2" Universal High-Speed Dies.
  •  Gallon Stainless Steel Premium Oil.
  •  (2) Hex Wrenches.
  •  Spare E-1032 Cutter Wheel.
  •  Stand Not Included***


  •   Automatic chuck
  •   Large 1.75-gallon oil reservoir.
  •   100% greater chip tray capacity.
  •   Generous top cover area for keeping tools and fitting handy.
  •   High clearance carriage.
  •   Can be used with geared threader model 141
  •   Length gauge for quick
  •   Chuck: automatic with four reversible forged jaws.
  •   Rear Centering Device: automatic, centering only.
  •   Cutters: self-centering, full-floating. Two models are available:
  •   One Standard. No. 820 Wheel-Type Cutter, pipe capacity 1/8"-2" (3mm-50mm), bolt capacity 1/4"-1" (6mm-25mm).
  •   Two Optional. No. 821 Blade-Type cutter, pipe capacity 1/2"-2" (12mm-50mm). See ordering chart (both sold separately)

  Model # 535A
  Pipe Capacity 1/8" - 2", 2-1/2"-4" with 141 geared threader.
  Bolt Capacity 5/16" - 2"
  Motor 2 HP, 115V, 60 Hz
  Amps 20 reversible induction motor.
  Spindle Speed 3 speeds 16/46/58 RPM
  Reamer 5-Flute cone, RH 1/8" - 2"

Catalog No: 84097
