Wireless Control
The Raptor’s Wireless Control System is a high-quality and reliable way to control your machine safely and efficiently. The rugged controller has several great features including motor on/off, torque up/down, speed up/down, forward/reverse, and an emergency stop button. The wireless control’s receiver is permanently mounted onboard the Raptor’s chassis and is safely stowed inside the protective housing. This commercial-grade technology is used on many modern cranes, boom trucks, and other heavy equipment. It will provide reliable control even when far from the machine. The wireless control can be attached to the included wireless foot pedal to allow for on and off control at the user’s preference. The controller is rechargeable and will easily last an entire workday or more with a fully charged battery. Includes wall and 12v car adapters for recharging between jobs or while on-site if needed.
Interchangeable Cable Reel With QuickFit® Technology

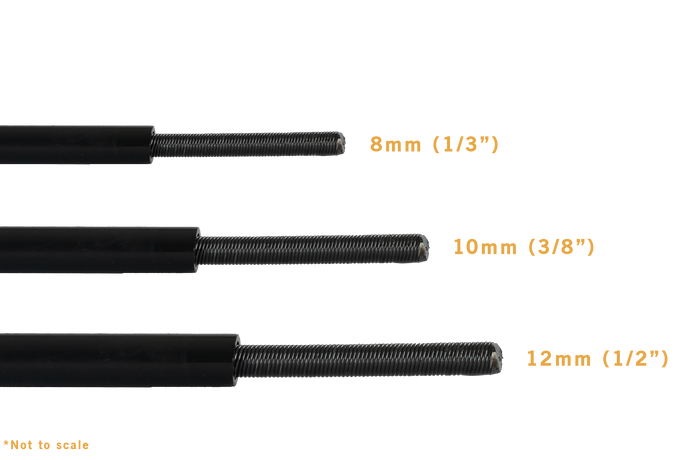

The Raptors QuickFit reel system allows for up to 3 different interchangeable cable sizes. This means you only need ONE machine for 3 different cable sizes. 100ft/30M x 8mm 1/3”, 100ft x 10mm 3/8”, and 75ft x 12mm 1/2” can all be added to the same chassis as needed. The patented design allows for quick and easy work between various-size pipes, and no tools are needed for a quick change. The cable feed can be located on top or bottom and left or right by simply turning the cable feed bracket. Work smarter by transporting the reel and chassis separately. This cuts down weight when loading in and out of a truck or up and down stairs. Quickly attach the reel when positioned at the work area. It’s as easy as that.
Dedicated to Safety

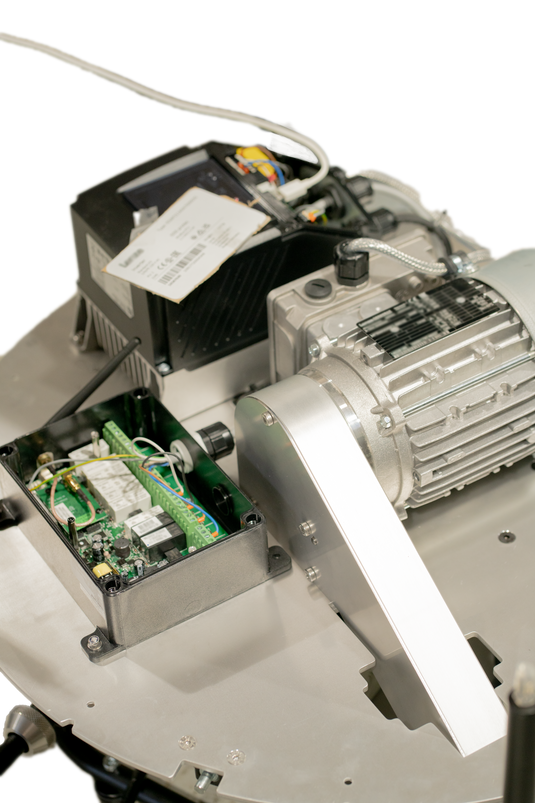

The Raptor has a dedicated electric motor with Smart Drive technology providing clean consistent power to the flexible shaft and tools. Safety features are fully integrated into the brains of this machine to help prevent over-torquing of the cable. Live monitoring of power requirements during operation will activate the E-Clutch if the tools become stuck or cannot rotate. This electronic clutch will protect the end user, machine, tools, and pipe integrity. After engaging there is ZERO delay in work, simply reposition the tools and restart the machine.
Lightweight and Portable
The Raptor is very lightweight weighing in at just 125 lbs. Large wheels allow for easy transportation over nearly any terrain as well as up and down stairs with ease. The narrow design easily fits through doorways without the need to turn the machine sideways. The rugged anti-vibration pads allow the machine to be laid down level with no risk of movement or sliding around during operation. This also allows the machine to stand up straight when in a vertical position. The heavy-duty rubber pads can be easily replaced if ever needed.
Warranty Info
Chassis and Mechanical Components
All Electrical Components
Multiple Service Locations across the USA.
Shop Raptor
FAQs
The E-Clutch built into The Raptor is there to protect both the machine and its end user. The integrated Smart Drive Technology prevents the shaft from being over-torqued. If your shaft becomes stuck or cannot rotate, the E-Clutch turns off the machine before it damages itself or the user.
This, combined with adjustable torque, make The Raptor the safest high-speed machine on the market today
If you were to lose just the foot petal, you can simply order a replacement! If you lose the Control Unit, you will have to send the machine in for a replacement and reprogramming. Luckily, our repair and return turnaround is very quick!

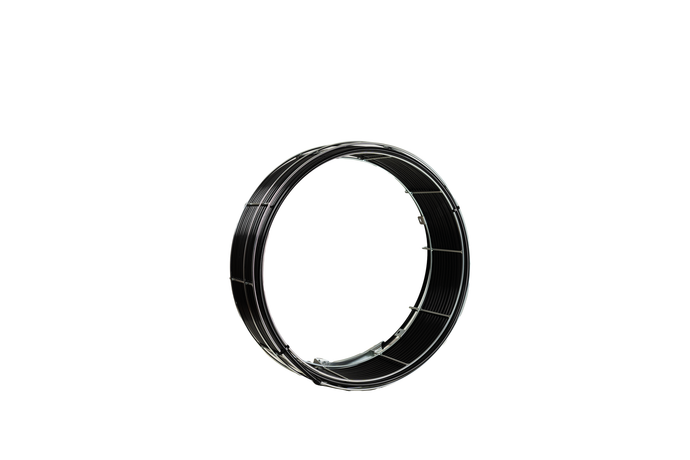

Our QuickFit interchangeable reels allow you to have different-sized shafts pre-loaded on their own basket. This enables you to quickly swap between sizes or add additional length to your shaft pulling one basket off and installing another. This can be done in less than a minute. Gone are the days of having to unspool and re-coil a shaft onto your milling machine.
Raptors
Raptor (Chassis only) - 82 lbs
Raptor w/ 8mm shaft - 117 lbs
Raptor w/ 10mm shaft - 124 lbs
Raptor w/ 12mm shaft - 163 lbs
QuickFit Spare Reels

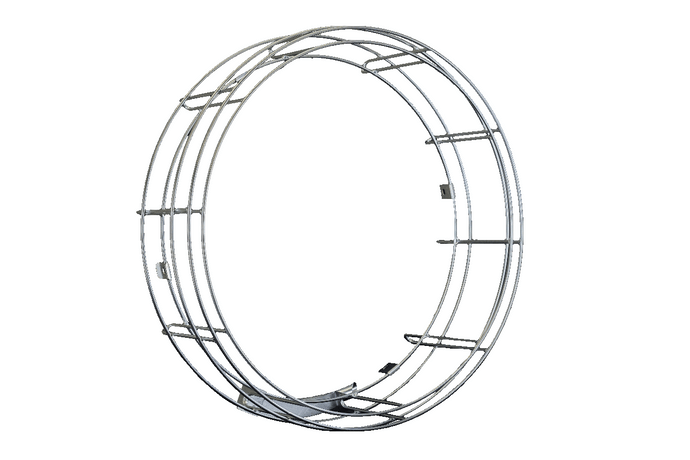

Basket Only (no shaft) - 8 lbs
8mm basket and shaft - 35 lbs
10mm basket and shaft - 42 lbs
12mm basket and shaft - 73 lbs
Yes, up to 30 ft for the 1/2" and 3/8" shafts. However, we do not recommend an extension on the 1/3" shaft.
110v 15 amp standard power is all that is required for the standard Raptor. The Raptor XL will require a 220v 20 amp outlet, which is standard on nearly all generators with a 220v option with a 4-prong twist lock.
We offer a range of tooling for drain cleaning, reinstatements, descaling, and liner removal.
Yes! All major brands are compatible with the Raptor and Raptor XL.
The Raptor is capable of reaching and maintaining 2400rpm when set to the maximum speed (120%).
No, the Raptor must be plugged into a power source. However, the foot pedal and remote control unit are completely wireless, offering maximum flexibility when operating the machine.
A 12v car charger and a 120v wall adaptor, as well as Quick Lock reel adapters for 8mm, 10mm, and 12mm.
The remote control unit can simply be charged and returned to service using the 120v wall adaptor or the 12v mobile charger for charging on the road.
The Raptor can be easily serviced and has a 1-year warranty on all mechanical parts and a 6-month warranty on its electrical components.
Simply fill out the "Equipment Service Request" form on the "Certified Repairs" page of DrainGear.com, or call our main offices at 888.258.9359 to begin the service/repair process.
The Raptor is made and assembled the USA at APS HQ.
With a wheelbase of 28.5", The Raptor Cutter easily fits through most standard doorways.
Yes, the Raptor has a powerful motor and belt drive system that generates huge power for even the toughest jobs.
Yes! The Raptor XL is a beast of a machine that can handle almost anything in its path. The 3 available reel sizes and lengths cover the working range of 3 machines combined with no problem. While it isn't available yet, it will be soon.
