SKU: APS-RAHT-75

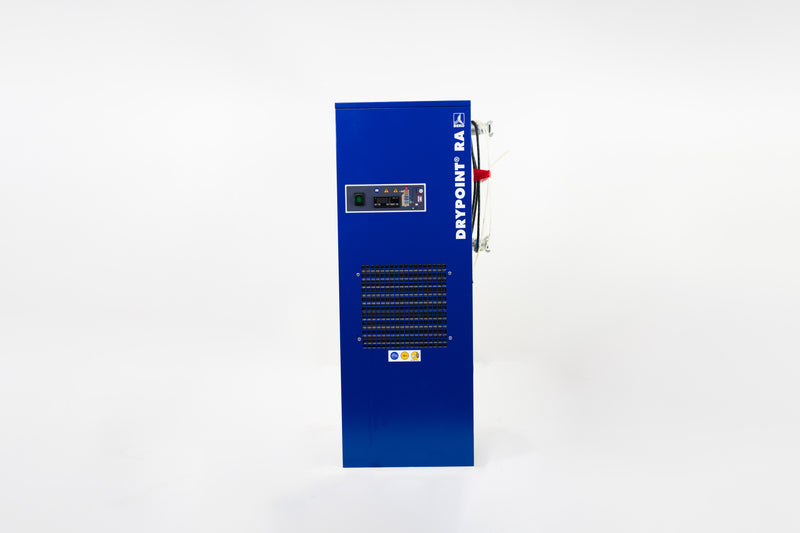

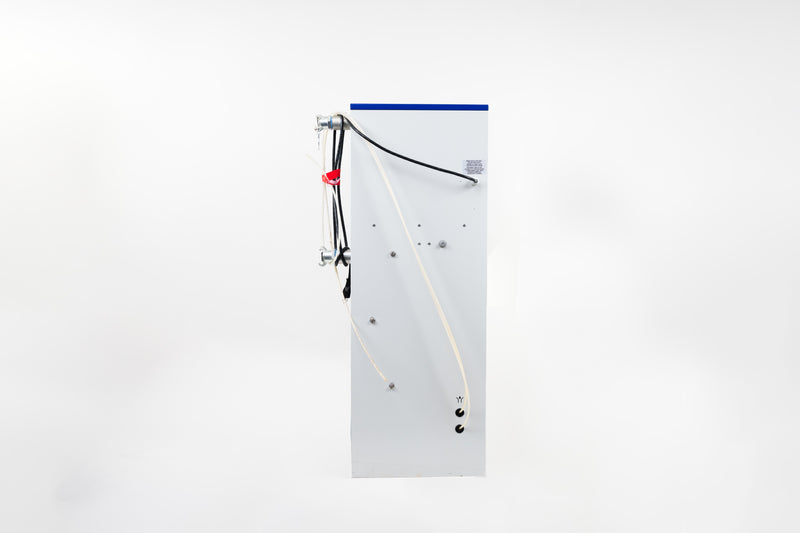

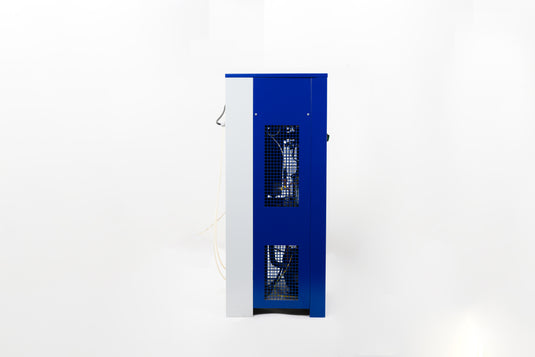

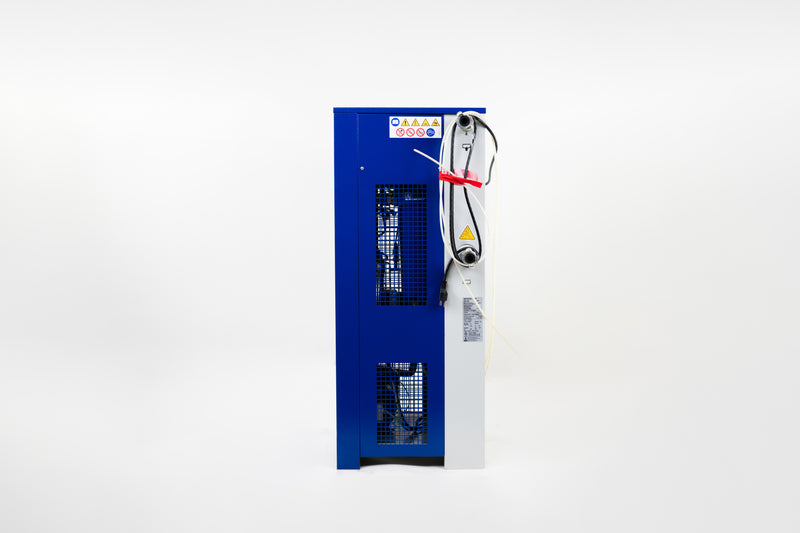

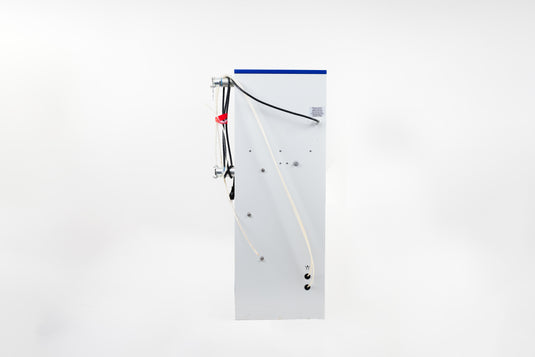

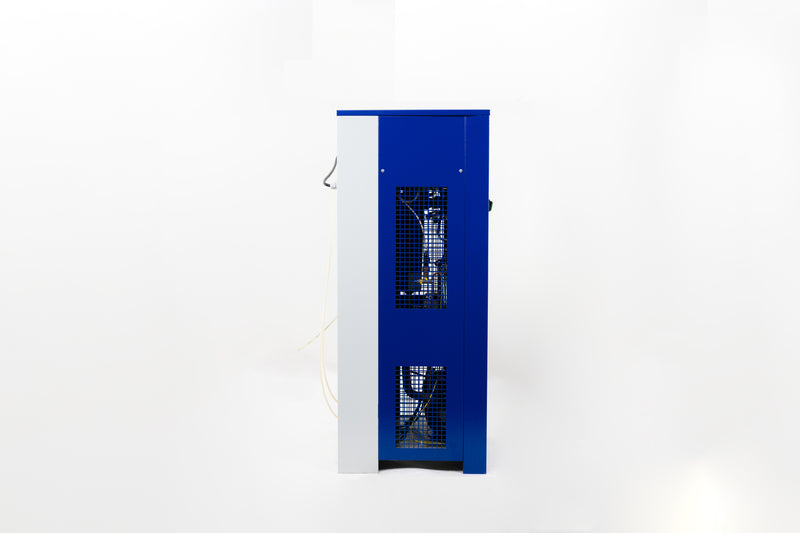

Drypoint Refrigerated Airdryer - Demo Unit

$2,400.00
$2,400.00 $3,450.00
Sale Sold out
/
In stock and ready for shipping
This is a pre order item. We will ship it when it comes in stock.

Drypoint Refrigeration drying can optimally be adjusted to individual requirements: in applications in which stable conditions prevail, DRYPOINT® RA is the number one choice.


DRYPOINT® RA Features and Benefits

Unique Heat Exchanger
  • Vertical profile allows for minimum pressure drop and self cleans using gravitational force
Varioflow Hot Gas By-Pass
  • Stable dew point regardless of varying operating conditions - patented design
Integrated BEKOMAT®
  • Reliable condensate discharge and maximum energy savings
Energy Saving Technology
  • Oversized condensers and smaller high performance compressor maximize energy savings
Maintenance Friendly
  • The entire range features an open frame that provides easy access to all components

SPECIFICATIONS
Flow Rate

20 - 350 scfm

Maximum Inlet Air Temperature
210 °F

Maximum Inlet Operating Pressure
20 - 50: 232 psig
75 - 350: 200 psig

Standard Outlet Pressure Dew Point | ISO 8573-1:2010 Air Quality Class
≤ 45-50 °F Class 5-6

Standard Condensate Drain | Optional
Timer Solenoid BEKOMAT®
